ULTRAMAX® MF TOUCH - 110/220v

ULTRAMAX® MF TOUCH - 110/220v

SKU: 5000237
|

In Stock, 31 Available

Price will appear in cart at checkout
$3,145.00 / Each
Sold out

Product Specifications

Brand: Gesswein®
Country of Origin: Taiwan
Dimension: 6-3/4" x 9-1/2" x 5-1/2"
Electrical: 90-240V AC, 50/60Hz

Safety, Compliance & Product Documentation

pdf_file.svg Instruction Manual
View full details

Product Description

The Multi-Function Ultramax™ MF TOUCH gives you the versatility of ultrasonic and mechanical polishing in one!

  • Polishes slots, ribs, and intricate details with ease.
  • Short stroke and fast reciprocation provide total control over the most demanding polishing tasks.
  • Special control functions make any finish possible, letting you polish right up to a wall or finish to an edge.

Ultramax™ MF TOUCH handles even the toughest metals, including tungsten carbide and titanium. Everything from milled surfaces to rough EDM surfaces can be polished to a mirror finish. Use all grades of finishing stones, sintered, resin, and plated diamond tools, as well as ceramic stones, and metallic & nonmetallic lapping tools with diamond compounds.

The MF TOUCH utilizes a high-efficiency microprocessor to deliver power to ultrasonic, brushless DC, and brush-type DC handpieces. Includes an ultrasonic handpiece with 36W of continuously variable power for precision reciprocating action.
an upgraded version of our popular Ultramax MF multifunction unit that incorporates touch screen control of operation and read out.

The Profiler output provides exceptional power to any of the Gesswein PowerHand rotary, reciprocating, side-to-side, or belt sander handpieces (all sold separately). The rotary output provides high speed and high torque power to the optional Gesswein BH-60 brushless type rotary handpiece.

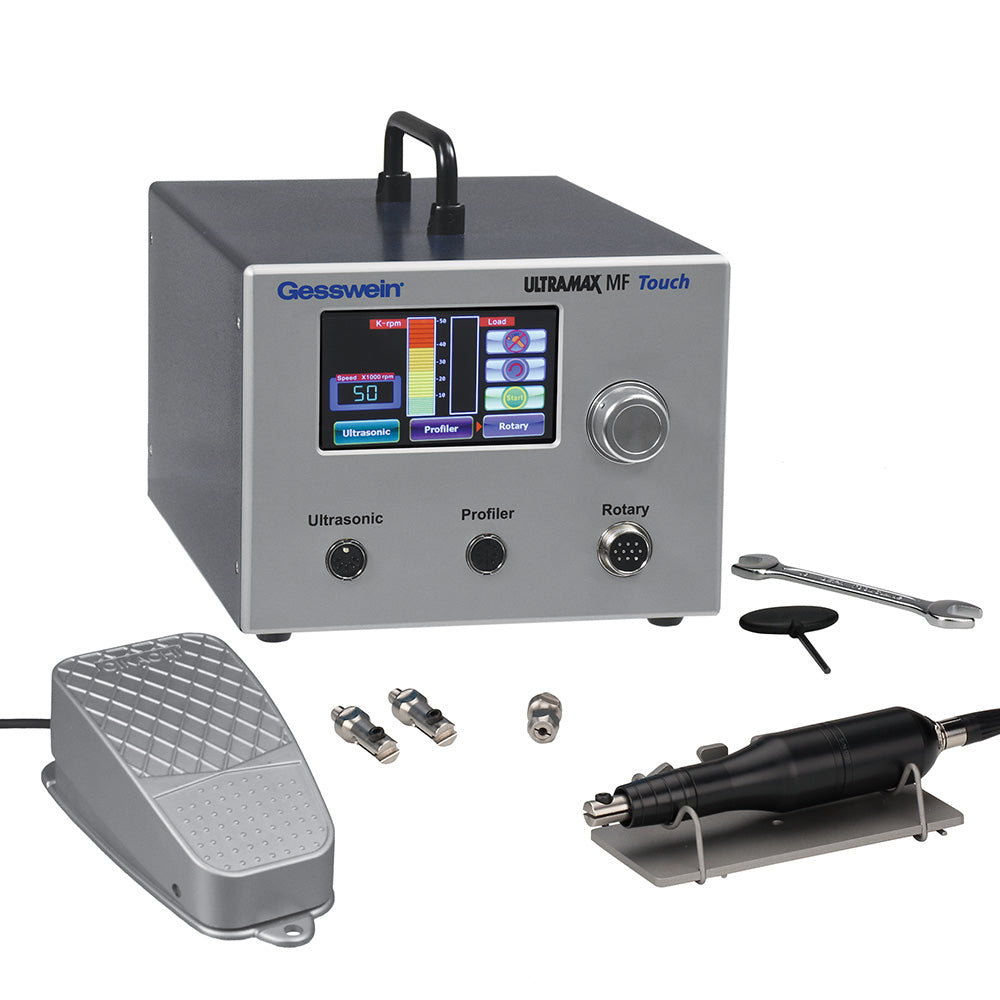

Ultramax™ MF TOUCH includes:
MF Touch Controller
Ultrasonic Handpiece
Handpiece rest
Tool changing wrenches
1mm & 3mm flat clamp tool holders
3mm round tool holder
Variable speed foot rheostat
Adjustable Operating Frequency: 18-26kHz
Stroke Amplitude: 3-40 Microns
Max. Power Consumption: 300 watts
Overload Indicator: Yes
Max. Output Power: 36W
Output DC Rotary Tool: 5-32V DC, Max. 180 W
Output DC Brushless Tool: 1,000-50,000 rpm, Max. 250 W

Electrical: 90-240VAC 50/60Hz
Fuse: 3A 20mm time-lag
Controller Dimensions: 6.75"W x 9.5"D x 5.5"H
Controller Net Weight: 5.5 lbs.
