Sisma SWT 450 F Laser Welder
Sisma SWT 450 F Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Brochure
Product Description
- Available Open or Closed Configuration
- Medium to Small Size Molds
- Pulse shaping software for easy tuning to eliminate porosity, undercut, or sink.
- Programmable Path Settings –Overlap, Line, Radius, Oblique, Fill, Rotating Spindle and More
- Motorized Control of X, Y, and Z Axes (via Joystick)
- Attach a 4th axis for circumferential welding.
- Internet Connection for Remote Service Management and Free Upgrades

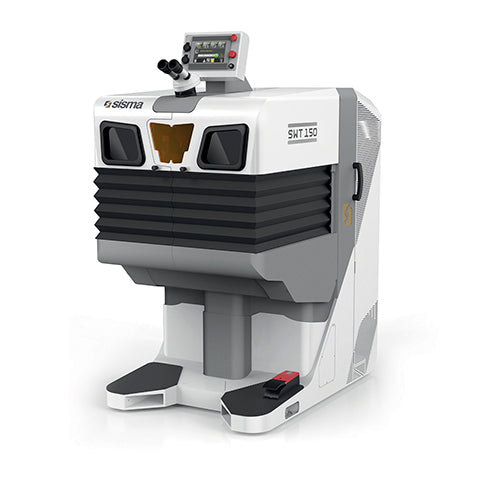

The SWT fiber laser welders are available in 2 configurations: Class 1 (closed) or Class 4 (open). Choose what works best for your shop! The SWT is specifically designed for the maintenance of medium to small sized molds up to 15.75" square (400mm). The robust design and sturdy working platform gives the operator outstanding comfort and minimal vibration. Controlled via joystick, the working platform moves up or down on the Z-axis with a range of 12.5" (320mm). The X and Y-axis movements are 11.75" and 7.75" respectively (300 x 200mm).

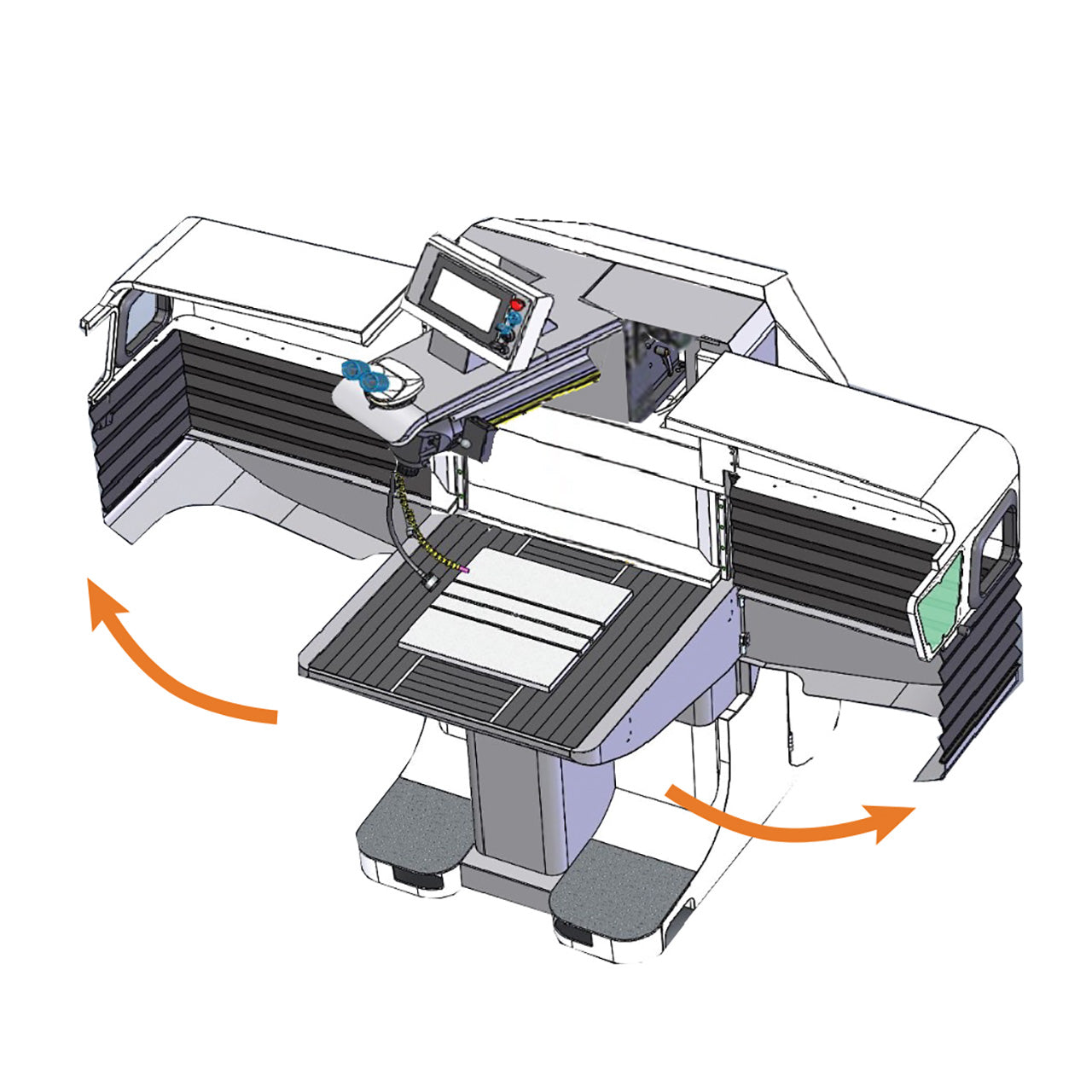

The ergonomic design of the SWT Class 1 (closed) is ideal for prolonged use. Soft armrests, adjustable doors, and adjustable footboard create a comfortable working environment. The stable working platform, on both Class 1 and Class 4 models, minimizes any vibrations, even at the full load capacity of 264 lbs. (120kg).
Fiber laser welders offer the highest productivity and efficiency when it come to processing speeds. They are maintenance-free and offer the greatest advantage of zero downtime.
Made in Italy. Backed by a 1-year manufacturer’s warranty. Installation, training, and service provided by Gesswein Company.
Key Features:
|
Model |
SWT 150F |
SWT 300F |
SWT 450F |
|
Item # Class 1 |
833-1876 |
833-1878 |
833-1880 |
|
Item # Class 4 |
833-1870 |
833-1872 |
833-1874 |
|
Source Type |
Fiber |
Fiber |
Fiber |
|
Wavelength |
1070 nm |
1070 nm |
1070 nm |
|
Average Laser Power |
150W |
300W |
450W |
|
Max Peak Power |
1.5kW |
3.5kW |
4.5kW |
|
Max Pulse Energy |
15J |
30J |
45J |
|
Pulse Frequency |
0 - 50 Hz |
0 - 50 Hz |
0 - 50 Hz |
|
Pulse Duration |
0.3 ms - 10 ms |
0.3 ms - 10 ms |
0.3 ms - 10 ms |
|
Laser Spot Diameter |
0.1mm - 2mm |
0.1mm - 2mm |
0.1mm - 2mm |
|
Axis Speed |
0.1mm/s - 25 mm/s |
0.1mm/s - 25 mm/s |
0.1mm/s - 25 mm/s |
|
X Axis Stroke |
11.8" (300mm) |
11.8" (300mm) |
11.8" (300mm) |
|
Y Axis Stroke |
7.9" (200mm) |
7.9" (200mm) |
7.9" (200mm) |
|
Z Axis Stroke |
12.6" (320mm) |
12.6" (320mm) |
12.6" (320mm) |
|
Cooling |
- |
- |
- |
|
Max Load Weight |
264 lbs. (120kg) |
264 lbs. (120kg) |
264 lbs. (120kg) |
|
Max Mold Size |
15.7" x 15.7" x 12.6" (400mm
x 400mm x 320mm) |
15.7" x 15.7" x 12.6" (400mm
x 400mm x 320mm) |
15.7" x 15.7" x 12.6" (400mm
x 400mm x 320mm) |
|
Power Supply |
230V±10%, 1Ph, 1.6kW |
230V±10%, 1Ph, 2.2kW |
230V±10%, 1Ph, 2.8kW |
|
Dimensions (L x W x H) |
33" x 48" x 60" (850 x 1200 x
1500mm) |
33" x 48" x 60" (850 x 1200 x
1500mm) |
33" x 48" x 60" (850 x 1200 x
1500mm) |
|
Weight |
1,235 lbs. (560kg) |
1,235 lbs. (560kg) |
1,235 lbs. (560kg) |
Established in 1961, Sisma is a worldwide recognized name for the design and production of extremely high precision laser machinery. Suiting the needs of diverse industries; jewelry, machining, prototyping, dental, and medical, Sisma’s expansive line of customizable laser solutions are synonymous with quality and superiority. Innovative by vocation, Sisma combines technologically advanced machines with unique patents. When coupled with a world class service and support network, optimal efficiency and utilization of their products are guaranteed.
