Maxima Mobile II BLDC Micromotor - 3.175mm collet
Maxima Mobile II BLDC Micromotor - 3.175mm collet
Available on Backorder
New
Product Specifications
Product Specifications
Product Description
The Maxima Mobile II BLDC model is a portable micromotor system that includes a compact and lightweight handpiece with a state-of-the-art brushless motor (BLDC), eliminating the need for carbon brush replacement. This micromotor has 9 hours of use with a 2 hour charge and can run forward and reverse. The handpiece has a built in overload protection function to help prevent excessive grinding, providing additional operational safety and peace of mind. The controller clearly indicates rotation speed via a color-coded LED display, allowing users to monitor RPM and suitable for applications where speed limits are integral at a glance.

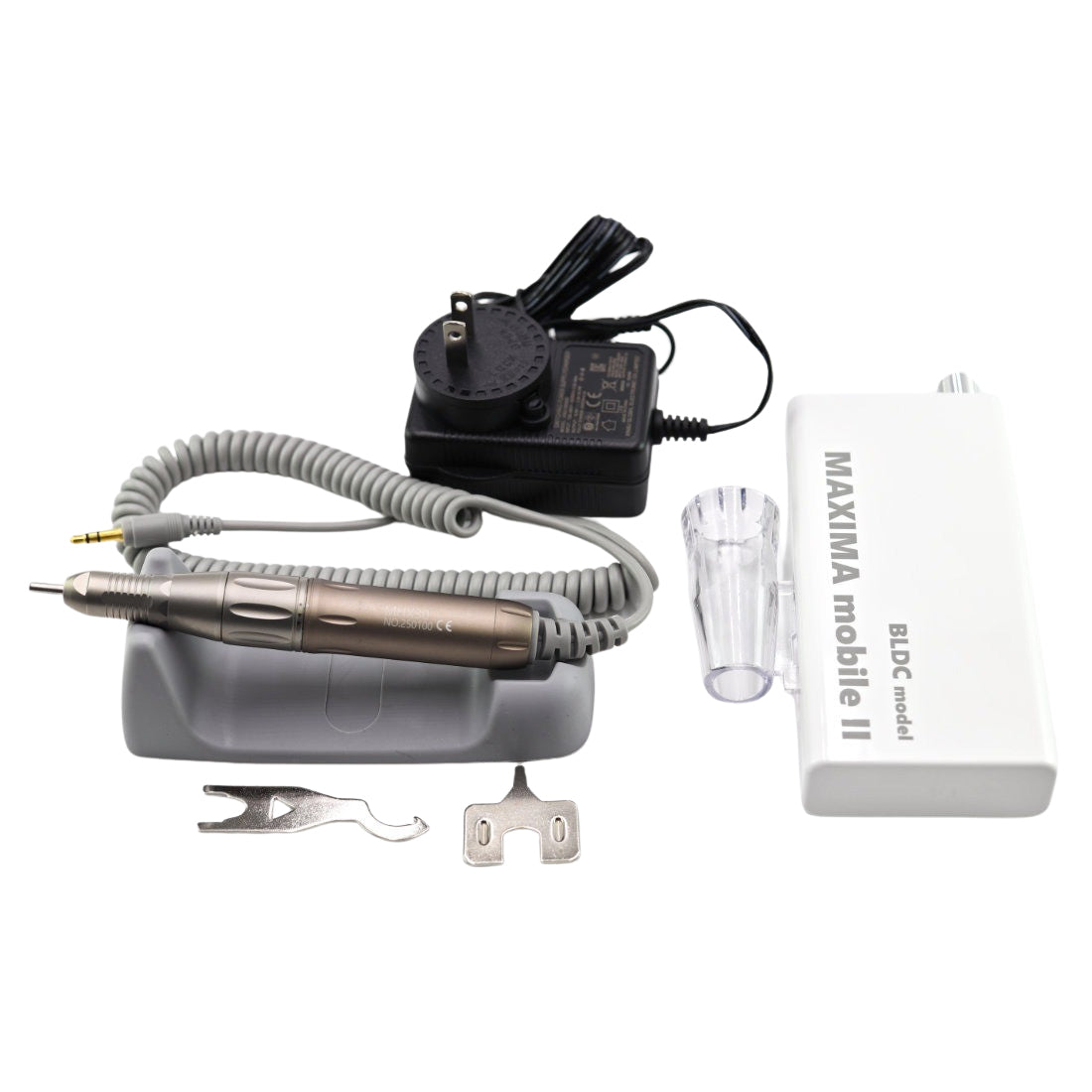

- MPX30 Maxima Mobile II Controller
- MHX30 Brushless Motor Handpiece
- One (1) 3.175mm Collet
- AC Adapter
- Handpiece Holder
- Handpiece Stand
- Chuck Wrench
- Chuck Joint Wrench
*Please note: always keep a bur or the spacer mandrel in the quick change handpiece. This helps maintain the longevity of the collets and prevents needs for repairs or replacements.Â
| Specification | Details |
|---|---|
| Collet Size | 3.175mm (1/8") |
| Battery Life | 9 hours of continuous use |
| Weight | 220g |
| Max RPM | 30,000 |
| Handpiece Style | Quick Change |
| Max Torque | 2.4 N/cm |
| Dimensions | 65mm × 147mm × 25mm |
| Electrical | 100–240V, 50/60Hz |
