KG 100 Automatic Flask Devesting and Cast Cleaning Machine
KG 100 Automatic Flask Devesting and Cast Cleaning Machine
SKU: 2652190
|
Special Order
New
Price will appear in cart at checkout
Regular price
$25,000.00
/ Each
Unit price
per
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Brand:
KWS
Country of Origin:
Germany
Electrical:
220V, 3 Ph, 60Hz
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Instruction Manual
Product Description

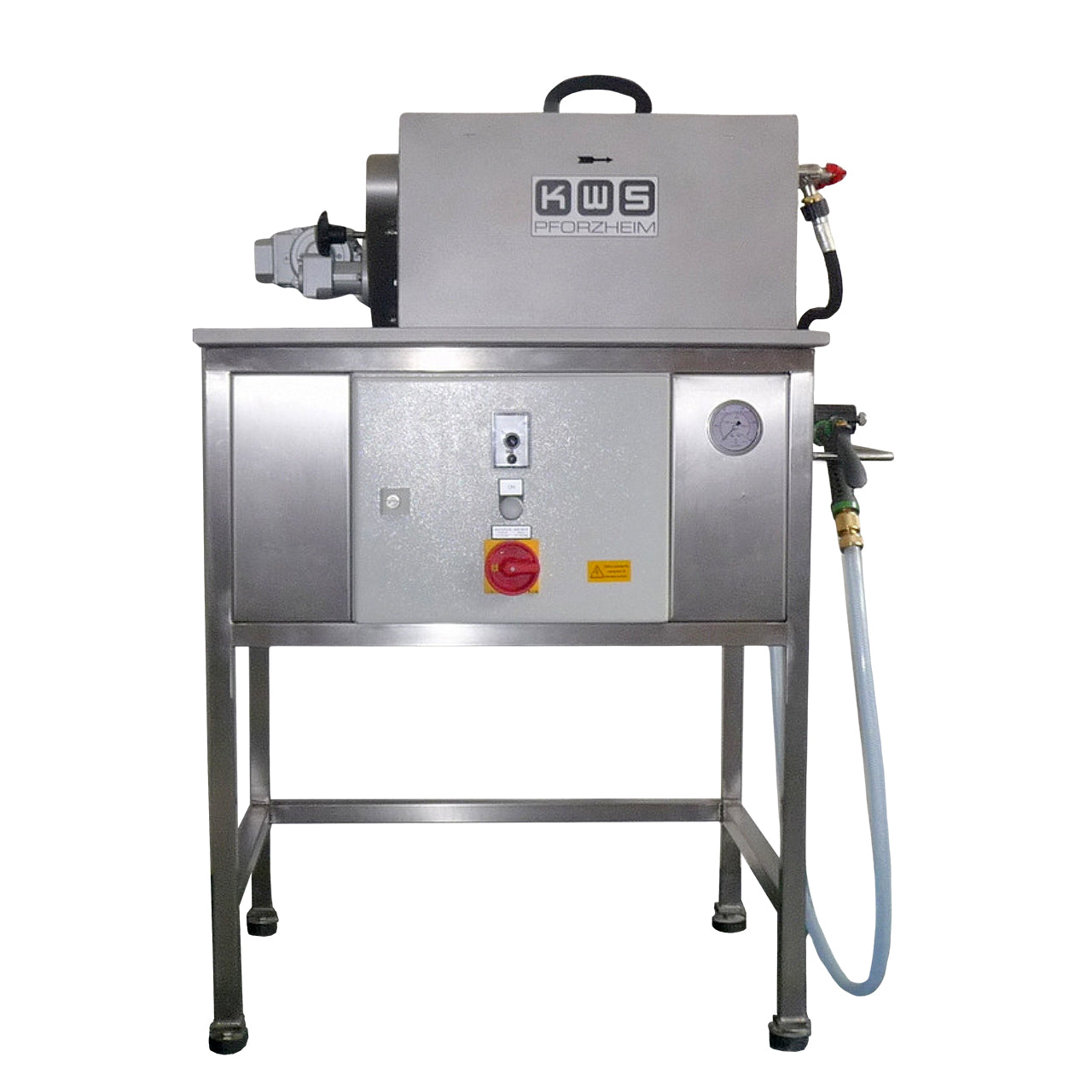

KWS Flask Investment Breaker and Casting Cleaning Machine combines two tasks into one automated system
1). Removing the casting tree from the flask using a water jet of 60-95 bar from an adjustable circular jet nozzle
2). Cleaning the investment from the casting tree using a jet of water from three movable jet nozzles of 95 bar (pressure is adjustable)
Key Benefits:
- Easy to use - Simple operation runs with minimal training
- Protects flasks - Automatic rather than manual will reduce distortion, increasing flask life
- Saves time - No need to manually clean gypsum residue from flasks
- Gentle on castings - Adjustable pressure prevents damage to delicate pieces
- Fast - Takes only a few minutes depending on tree length
Specifications:
- Max. flask diameter: 150mm
- Max. flask height: 280 mm
- Cleaning time per casting tree 1-2.5 minutes
- Electrical: 220V, 60Hz, 3 Ph
- Supply of water 3/4“(ID of hose must be 13-14mm (at least a 1/2")
- Water consumption 18 l/min
- Machine Width x Depth x Height: 850 x 650 x 1250 mm
- Machine Net weight: 147 kg (323.4 lbs.)
- Warranty: 1-year manufacturer's warranty. Wear parts such as nozzles are excluded
