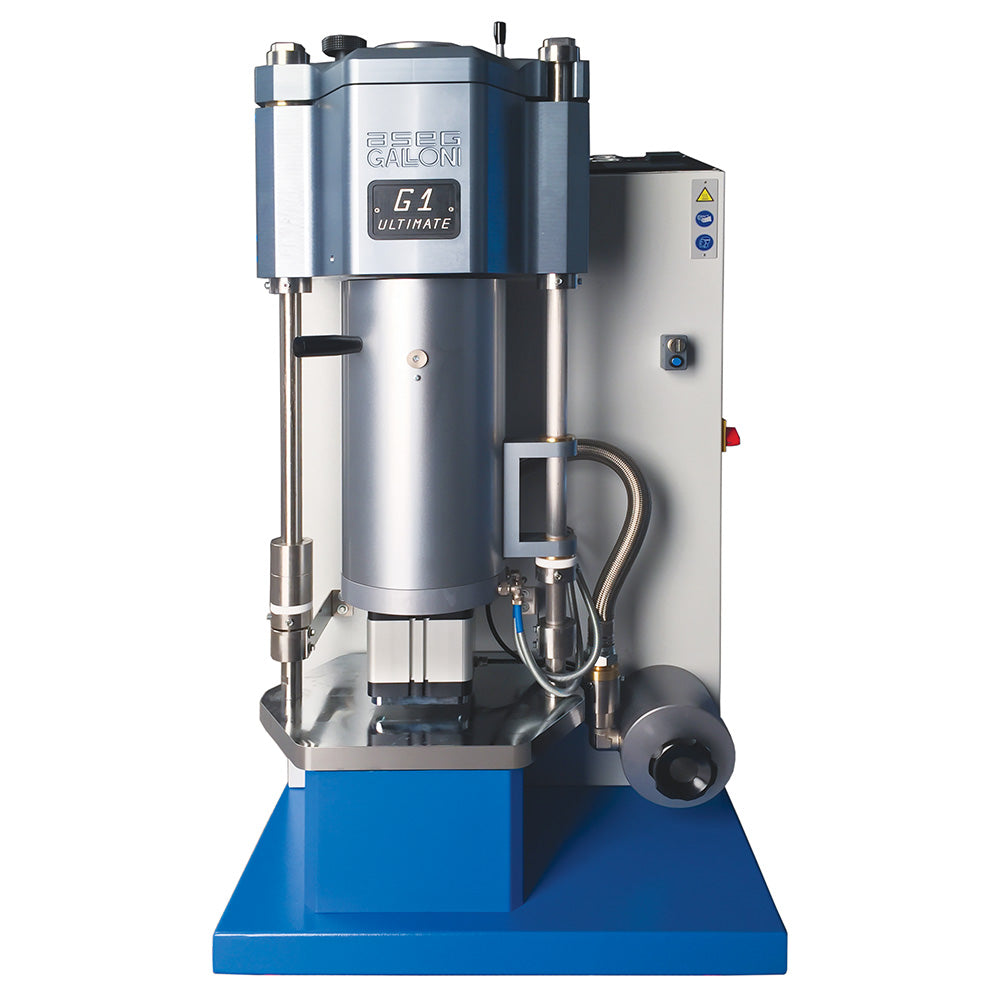

Galloni G1 Ultimate
Galloni G1 Ultimate
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Brochure
Product Description
The Galloni “G” range casting machines are the latest and most technically advanced induction heated vacuum “over pressure” machines currently available worldwide, featuring low frequency generators and fully proportional computer-controlled power output. The operator has simply to charge the crucible, place the casting flask in position and press one button! This model G1 is equipped with a touch-screen 3-color LED 3″. All machines lead the operator logically step-by-step through the casting sequence, irrespective of the type and quantity of the alloy. Frequency and power output are automatically and continuously adjusted and, just ahead of attaining the preset casting temperature, the computerized control starts modulation of the heating current by delivering low frequency impulses, thus inductively stirring the melt. Then, when all parameters are achieved and the temperature “spread” is no more that 4°C either side of the set point, pouring starts automatically followed by strong pressurization of the molten metal by inert gas. The complete cycle can be performed in 5 minutes. Requires a 60-cubic meter vacuum pump (see our 2650837 sold separately).
Backed by a one-year warranty. CE approved. Optional graining unit also available.
| Compare Models: | G1 Ultimate | G3 Ultimate |
| Electrical: | Three phase 230/380/415 V – 50/60 Hz – 5kW | Three phase 230/380/415 V – 50/60 Hz – 10kW |
| Melting Capacity: | 1,400g Au 18K 1,200g Ag 925 |
2,200g Au 18K 2,000g Ag 925 |
| Volume Capacity: | 240 cc | 240 cc |
| Flask Capacity: (max. Dia. x Height) |
150 x 250mm | 150 x 300mm |
| Max. Temperature: | 2,552°F (1,400°C) | 2,552°F (1,400°C) |
| Water Requirements*: |
150 liters/hour | 150 liters/hour |
| Air Supply: | 8 bar/90 PSI | 8 bar/90 PSI |
| Inert Gas Supply: | Argon, Nitrogen, or Helium | Argon, Nitrogen, or Helium |
| Vacuum Pump: | 40m3/hr. |
External 40m3/hr. |
| Dimensions: (W x D x H) |
85 x 70 x 120cm (33.5" x 27.6" x 47.3") |
85 x 70 x 120cm (33.5" x 27.6" x 47.3") |
| Weight: | 230 kg (507 lbs) |
240 kg (530 lbs)
|
| Warranty: | 1 year | 1 year |
