Diamond Vacuum Brazed Points 3mm shank Set of 10

Diamond Vacuum Brazed Points 3mm shank Set of 10

SKU: 2263000
|
Special Order
Price will appear in cart at checkout
$337.00 / Set of 10
$337.00 / Set of 10 $0.00 USD % Off
Sold out

Product Specifications

Brand: joke Technology
Bur Diameter: Assorted
Bur Material: Diamond
Bur Shape: Assorted
Diamond Grit: D427 grit
Item Length: 55mm
Package Size: Set of 10
Shank Size: 3mm
View full details

Product Description

The vacuum-brazed bonding provides a much better adhesion of grits to the carrier thanks to direct fusing. These 3mm shanked, D427 grit diamond points are particularly suited for fiber reinforced materials such as GFR and CFR plastics (in aircraft construction and shipbuilding), tungsten carbide green components (unsintered carbide), ceramics (valve cover rings for car engines), coal products (brake discs, carbon brushes), titanium and cast materials.  Overall length: 55mm


Benefits of this new vacuum-brazed bonding include:

• Very good stock removal thanks to higher grit protrusion

• Allows production of more complex forms, e.g. inner radiuses

• Markedly better grit retention force

• Cooler grinding thanks to larger chipping spaces

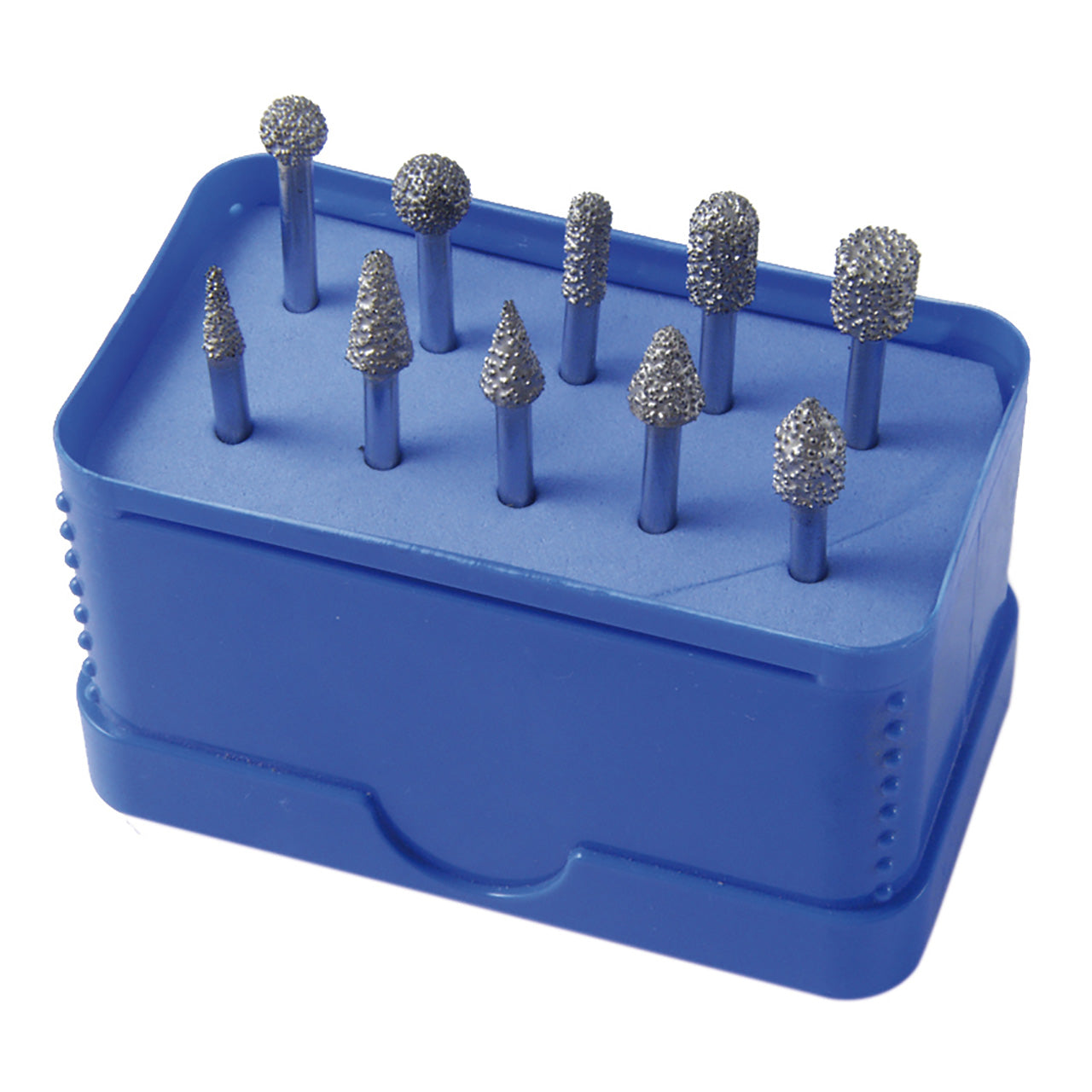

This set of 10 consists of the following:

• Cylinder, Ø 7 x 7 mm

• Rounded cylinder, Ø 4 x 7 mm, R = 2

• Rounded cylinder, Ø 6 x 10 mm, R = 3

• Ball, Ø 6 mm

• Ball, Ø 7 mm

• Pointed cone, Ø 6 x 4 mm, 60°

• Pointed cone, Ø 6 x 10 mm, 30°

• Rounded cone, Ø 4 / 1 x 10 mm, 14°, R = 0.5

• Rounded cone, Ø 6 / 3 x 10 mm, 20°, R = 1.5

• Rounded cone, Ø 7 / 3 x 7 mm, 36°, R = 1.5Â
