Foredom® Model TX Motor, 1/3HP - 115V

Foredom® Model TX Motor, 1/3HP - 115V

SKU: 8500381
|

In Stock, 5 Available

Price will appear in cart at checkout
$312.50 / Each
Sold out

Product Specifications

Brand: Foredom®
Country of Origin: United States of America
Electrical: 115V
Horse Power: 1/3 HP
Type: High-Torque

warning Warning

Cancer and Reproductive Harm
www.P65Warnings.ca.gov.

View full details

Product Description

  • Extra power / torque for the most demanding work
  • Superb for hogging out large quantities of wood or porting engines
  • Offers excellent control of the cutting tool, drill, or bur while under load

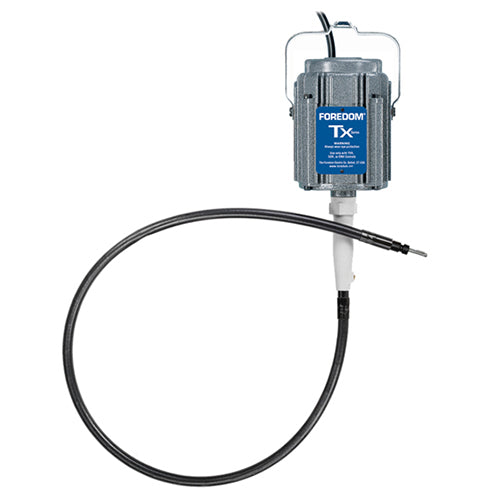

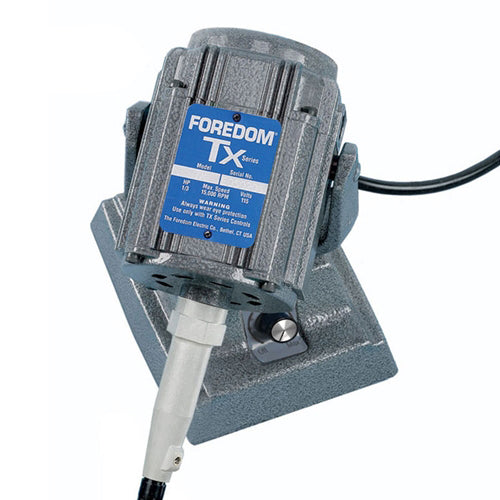

The Series TX motor is Foredom's most powerful flex shaft machine at a full 1/3 HP. TX has a permanent magnet DC motor that features the latest in flex shaft technology. This ball bearing model utilizes advanced rare earth magnets (in place of the wound fields found in Foredom's universal Series SR motor) that deliver more torque at the low end and throughout the entire speed range of 500 to 15,000 RPM. No other flex shaft gives you greater control of the cutting tool, drill, or bur under any load. Includes 39" flex shaft.  Speed range: 0-15,000rpm. 50/60Hz.  115V.  Made in USA.



TXR Foot Rheostat sold separately.  The TX motor also accepts the SXR-1 foot rheostat or the EMX manual speed controller. Backed by a two-year manufacturer's warranty.



Also available in a money-saving kit which includes handpiece and speed control: Foredom TX Kit.


Foredom TX Instruction Manual

How to Replace Shaft and Sheath

Foredom TX Tool Tips


Important Safety Instructions from FOREDOM®

  • Always wear proper eye and face protection—
    Always wear safety glasses and or a face shield when using rotary power tools. Regular eyeglasses do not provide sufficient protection.
  • Never wear loose clothing or jewelry and tie back long hair—
    Ties, scarves, jewelry and long hair pose a hazard when using rotary power tools.
  • Never use accessories at speeds above the maximum RPM—
    Accessories used at faster than the recommended speed can become damaged, and hazardous to you and others in the work area. Always check the speed rating.
  • Never use a damaged accessory—
    If an accessory appears to be bent, loose, vibrating or out of balance do not continue to use it. Use a clean sharp accessory that is recommended for the material you are working on. Let the speed of the tool do the work. Do not force the tool or use excessive side pressure.
  • Always use dust collection, respirator, or face mask to prevent inhalation of dust particles from workpiece or abrasives.
    • Which Foredom Flex Shaft is right for your job? In Segment 1 of this three-part "Foredom in Action" series of videos, Wayne Werner discusses the differences and benefits of each. Segment 2 is a discussion of Speed Controls, while Segment 3 focuses on Foredom handpiece choices.)
